Description
Anntem RF Door Access Openner Button Remote Control Switch Intercom Button Wireless Switch Video door phone Button Remote Switch
Product preponderance
1.360 degree,NO dead Angle
2.RF Remote Control Switch,can through walls
3.Ultra low power,High sensitive response
4.Super small size,Factory direct sale
5.Independent coding, many sets will be not interference of each other

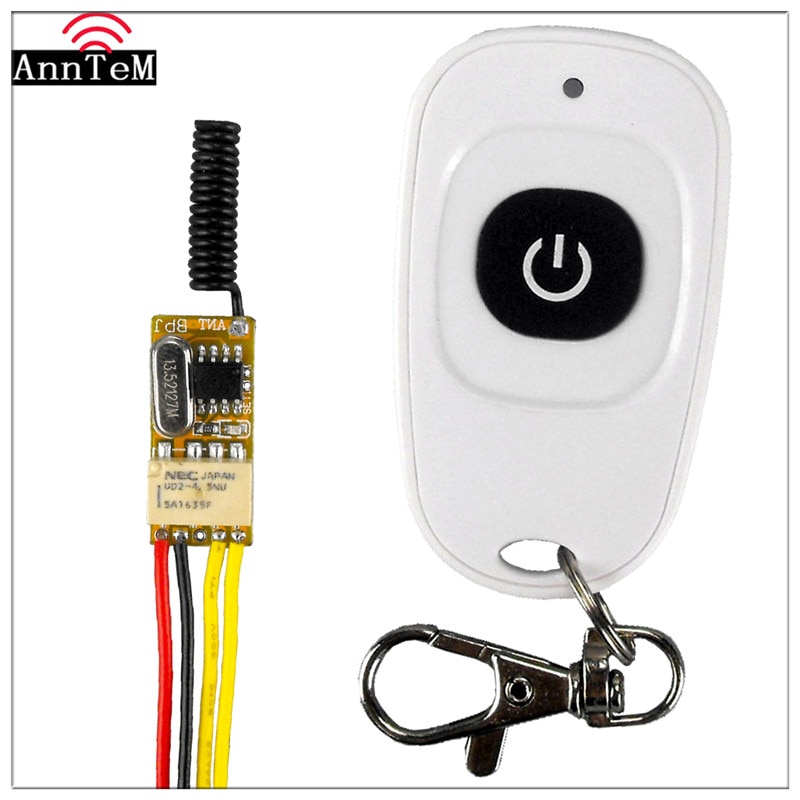

Product main photo
Relay of remote control switch
Prompt : products output without power,Output port respectively are NO and Com switch on or disconnection
Product scope
The module of the output port, The equivalent of inching switch,Point switch,starting switch,press switch,Trigger switch
Product parameters
Power supply module:DC 3.7V to 24V
Module consumption: Standby current 7mA,Work current 30mA
Module load: 1A(Less than 10 watts)

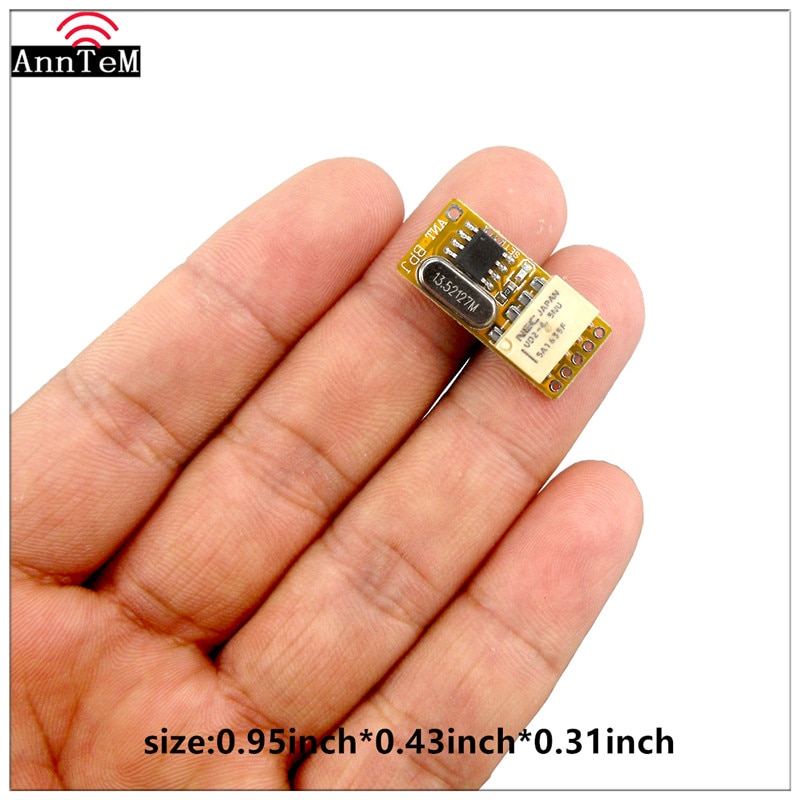

Module size: 0.9inch*0.43inch*0.31inch

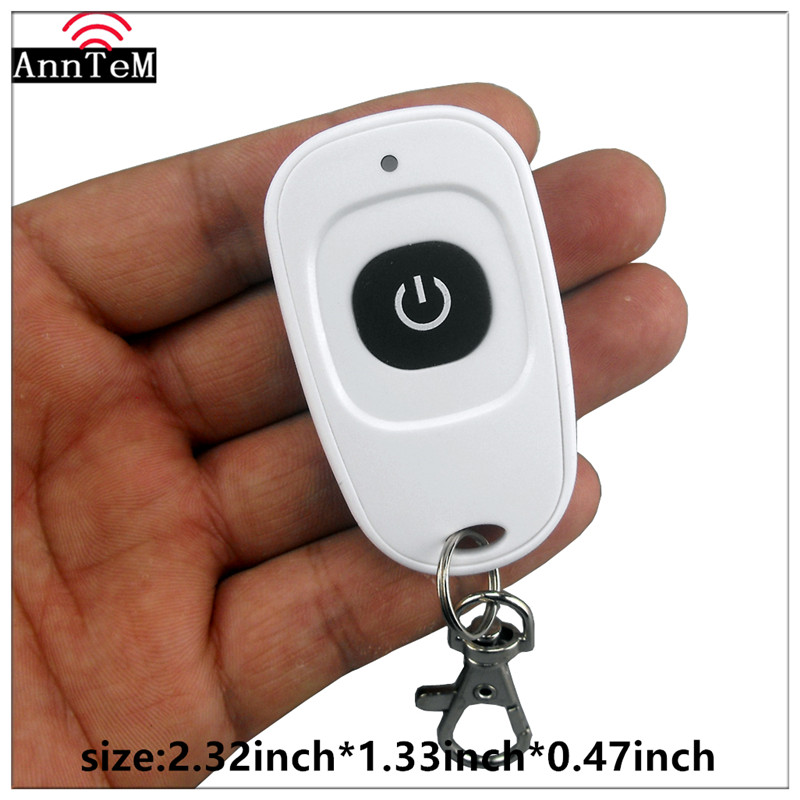

Remote control size: 2.32inch*1.33inch*0.47inch
Wireless Frequency: 433 mhz
Control distance: 20 meters open environment, can through walls
Product wiring instructions
Product attributes:
Correct access power supply products, The standby mode is default module, NO and COM is disconnected
press the remote control button, NO and COM are connected (Module LED flash once)
Loosen the remote control button, NO and COM is disconnected(Module LED flashes twice)
Without memory function of the module, if Power off or Remote closing, NO and COM is disconnected
Inching switch sample figure
Direct load figure

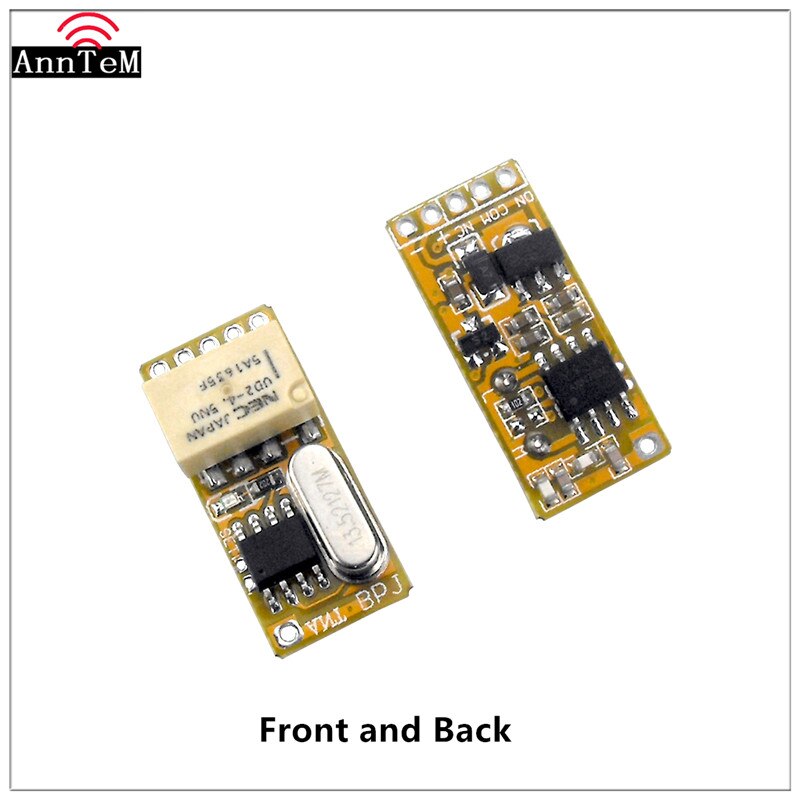

Product detail
