Description
| Manufacturer | Xiaomi |
| Type | Full HD Dashcam |
| Material | SABIC flame retardant PC/ABS material |
| Camera Lens | F1.8 large aperture, 165° ultra-wide-angle lens |
| Image Processor | YI A12 dual-core + DSP specialized chip, enhanced version of the wide dynamic, 3D noise reduction |
| Image Sensor | 1/2.7 inch, 3.0 × 3.0μm, 4000mV / lux – s |
| Video Encoding | H.264 encoding, MP4 format |
| Supported Resolution | 920 × 1080p 60fps, 1920 × 1080p 30fps, 2304 × 1296p 30fps |
| Image Format | JPG |
| Image Resolution | 3M (2048 x 1536) |
| Audio System | Built-in high quality microphone and speaker (AAC) |
| White Balance Mode | Auto |
| WiFi | Wi-Fi 802.11n, 10m distance |
| WiFi Functions | Sync and Sharing Albums, Image Transmission |
| Wireless Encryption | WEP / WPA / WPA2 |
| Gravity Sensor | Built-in high-precision three-axis sensor |
| WDR | 2nd generation enhanced version of the wide dynamic e-HDR |
| Storage | Max External Card Supported: TF 64GB (not included) Class Rating Requirements: Class 10 or Above |
| Display Type | TFT LCD screen |
| Size | 2.7 inch, 16 : 9 |
| Resolution | 960 x 240 |
| Battery | Built-in 240mAh Li-Polymer battery |
| Total Power Consumption | ≤ 4.0W |
| Power Supply | Car cigarette lighter, DC 12 – 24V |
| Power Cord Length | 3.5 m |
| Power Interface | 5V / 1A micro USB interface |
| Mount | Glass Suction Cup |
| Compatibility with Car Brands | Universal |
| Supported Platforms | Android 4.1 or later versions, IOS 7.0 or later versions |
| Dimensions | 74mm × 52.4mm × 19.4mm |
| Weight | 74g |
| Color | Gold
YI CAR CAMERA * This product works only with Chinese APP Smart YI CAR CAM DVR
Car DVR, specially designed device for all car enthusiasts YI CAR CAM combines high standards and functions of already existing in the current market DVRs. Our goal was to maximize the performance of the device for the optimal price. Yi Car DVR has a special additional Smart feature ADAS, which analyzes the speed, distance and other data, allows to determine the hazards arising from the surrounding objects while driving, and to warn the driver about them. YI CAR CAM supports the FULL HD resolution of 1920 × 1080p 60fps and the maximum resolution of 2304 × 1296p 30fps, so you will get a high-quality 1080p 30fps video.
Smart System ADAS Modern image recognition algorithms, real-time detection of road markings and vehicle departure from them, control of distance between vehicles and a voice warning to the driver about occurrence of unsafe situations on the road. It also has a sensor that will detect the impact force (weak, medium, high). In the case of an accident, the device will automatically provide all information about it, preventing the emergence of conflicts between traffic participants.
Wide viewing angle of 165°, covering three traffic lanes The question of the presence of blind zones in the DVR is one of the most important. That is why we have equipped the YI CAR CAM with wide-angle glass lens, viewing angle of which reaches 165° and easily covers three lanes. High sensitivity, real and detailed reconstitution of the situation on the road. Aperture f/1.8 The ultra-sensitive image sensor Night mode One indication of the DVR class is the quality of its night filming. Most of the traffic accidents happen during the night. Driver fatigue, dim light of street lamps, sharp glare of headlights and many other factors greatly increase the risk of road traffic accidents occurrence. High resolution lens of YI CAR CAM is made of display glass 6G, it has an aperture f/1.8 and an upscale photosensitive matrix 3.0 × 3.0μm, which as a result provide the high quality of night filming. The YI CAR CAM will provide a clear and colorful video recording, even in low light conditions, besides, you will not need an additional light source. Built-in WiFi The device has a built-in wireless module 2.4G, through which you can open the app to view the video in real time, or to check the history of recording. Even going on a long trip, you need to bring a Smart DVR YI CAR CAM and safely overcome any distance.
A clear high-definition video 1080p 60fps, H.264 video compression Specially designed chip and a frame rate of 60fps provide the high-speed recording of the road situation, clear and bright video image to restore the actual situation on the road. The newest H.264 video compression technology provides the razor sharp picture in pixels, thus allowing you to save even more hours of video in the device memory.

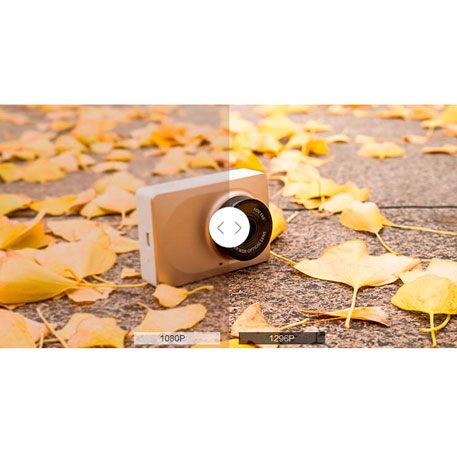

Ultra-high resolution 1296p UHD (high accuracy of interpolation)
6G display glass lens + infrared light filter Clear video image The camera lens is made up of six special optical lenses and one infrared filter, which neutralizes the blinding light and helps to record a clear and vivid Full HD video.

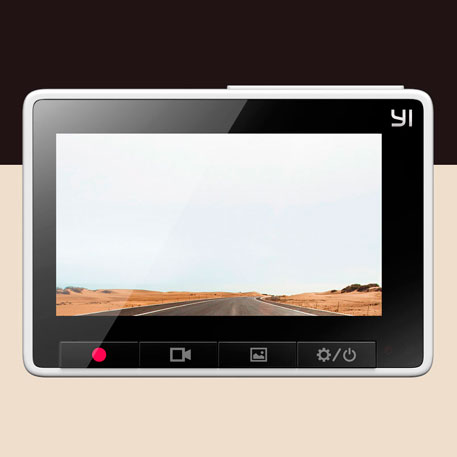

Widescreen Display 2.7″ with aspect ratio 16 : 9 A widescreen high permeable 2.7″ LCD display with aspect ratio 16 : 9, wider viewing angle, recording during the whole way. Large touch-sensitive buttons, more convenient and easy control, long service life. External smooth surface of buttons is environmentally friendly and has a pleasant texture. ICON New design, more simple and intuitive interface.

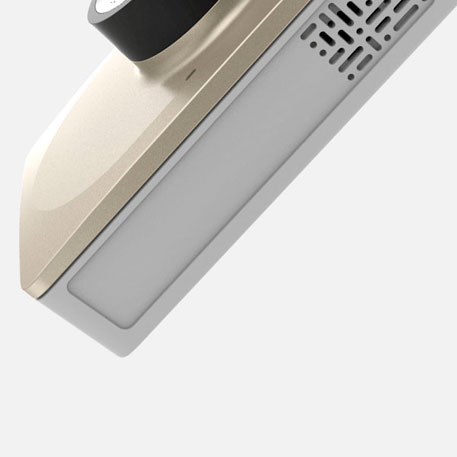

Symmetry of the holes, air convection New design for device cooling During operation of the DVR, cold air is entering through the bottom holes, hot — is coming out of the upper. Under favorable operating conditions, the life of the device may increase significantly. New YI CARCAM fashionable design has many symmetrically placed holes that enhance the effectiveness of the air circulation in the device and improve heat dissipation. Our DVR is resistant to fire, eco-friendly, wear-resistant, anti-corrosive, has the UV protection, does not contain lead, has no specific smell, so we can ensure its long-term stable operation. User-friendly and simple design for YI CAR CAM fixing, reliable and easy to install Wear-resistant and flame-resistant device T-shaped slot is designed for convenient and easy mounting of the DVR to a special bracket, so the YI CAR CAM will not fall while driving. Thanks to it your trip will be accompanied by safety and reliability. Not losing any detail Use of quality PU varnish for coloring the body, pleasant tactile sensations upon contact with metal surfaces of the device. As a result of rigorous testing, we can note that the material of the YI CAR CAM DVR is wear-resistant, corrosion-resistant, resistant to high and low temperatures. More important is that the device has a solar control coating, does not contain toxic substances, has no specific odor, is ecologically safe, and its high quality lens “picks up” every little detail.
Precise technologies, excellent characteristics To combine powerful features with high level of safety, our engineers and designers together with experts from Germany, Taiwan, Japan, worked thoroughly on the development of the construction and each part of the device. For coloring the body, we used the special qualitative PU varnish, which has the property of protection against UV rays, combined resistant to fire SABIC and PC / ABS materials, developed the special design for better air convection and cooling of the DVR, chose the advanced high-tech components and equipped the YI CAR CAM with them.
Smart YI CAR CAM DVR
Smart YI CAR CAM The best ratio of price and quality The specialists from Germany, Taiwan and Japan have worked together with our (Chinese) engineers and designers on the creation of Smart YI CAR CAM. As a result of our fruitful teamwork we have created an incredible Smart YI CAR CAM, which, in addition to its high performance and advanced technologies, has an excellent price-performance ratio.
6G display glass lens + infrared filter Temperature stability, clear and sharp image The YI CAR CAM DVR lens consists of six special optical lenses in combination with an infrared light filter, which provide a wide viewing angle of 165°. Thanks to the high qualitative lens, the image remains sharp and clear both when recording the video in daylight and during night filming. Aperture f/1.8 Qualitative night filming The aperture of the lens receives the maximum amount of light, the larger the light permeability is, the more qualitative is the image obtained in low light conditions. Aperture f/1.8 of Smart YI CAR CAM DVR shows that the ratio of the lens diaphragm relative to the aperture is 1 / 1.8. Theoretically, increasing the amount of input light rays complicates the design of the device increases its weight and increases the production costs in several times. In our case, the increasing of the lens aperture had almost no impact on the cost of the DVR. Image Sensor Aptina AR0230 by the American supplier company We used the image sensor Aptina AR0230 with dynamic interval (HDR) by the advanced American company-supplier of electronics ONSEMI, the size of which is 1 / 2.7“. It helps to create the high-qualitative video with recording speed (HD) 1080p 60fps. Support for HDR video provides a motion compensation optimization, an optimal algorithm of local displaying of color shades (ALTM) and a digital lateral overflow (DLO), reducing image distortions and optimizing HDR color rendering. The matrix of photosensitive pixels Smart YI CAR CAM DVR is equipped with a high-qualitative photosensitive sensor 4.0V / Lux-sec with a pixel size of 3.0 × 3.0μm, thanks to which the quality of night filming got better twice, compared to conventional DVRs. The unique 40nm chip For Smart YI CAR CAM DVR, we have chosen a special new 40nm A12 chip — a high-performance dual-core CPU + DSP processor, which makes it possible to record the video ADAS + 1296p 30fps / 1080p 60fps. Advanced H.264 video compression technology with low power consumption level allows you to record more hours of video on a limited memory space. Low power consumption DSP technology provides fast image processing, high performance and safety.
2.7″ display with an aspect ratio of 16 : 9 4 buttons — preview, more convenient control Smart YI CAR CAM is equipped with a 2.7-inch widescreen LCD display with an aspect ratio of 16 : 9, for easy preview and video playback. Rich colors, qualitative image (960 × 240 pixels), good dynamic response, absence of interferences, viewing angle is up to 165°. 4 handy functional buttons, thanks to which you can easily control the DVR. Second generation of e-HDR A clear and high-qualitative image regardless of various adverse conditions such as entering the tunnel, departure from the underground parking or other circumstances in which there are too much darkened and illuminated places. The wide dynamic range technology e-HDR, compared with the conventional WDR technology, increases the dynamic range by 25%.
Full HD 1080p 60fps video Video recording with high frame rate allows you to capture the finest details, that’s why during sport competitions there are often used the advanced high-speed video recording devices for further video viewing and making any judicial decision. While recording the motion of the vehicle the conventional DVRs with 30fps video support may have some errors, video delays. The Smart YI CAR CAM supports Full HD 1080p 60fps video, so when the vehicle is moving at high speed, the DVR records the video with all the smallest details, which can later be used as an evidence in case of a road accident, or as a a video of beautiful landscapes. Ultra-high resolution 1296p UHD The pixel density of ultra-high resolution 1296p UHD, compared with the usual 1080p video, is higher by 44%, so the image becomes more qualitative.
ADAS Smart System Built-in technology that helps the driver to control the vehicle and increases the level of safety while driving. Modern algorithms for image recognition, the detection of road markings and the vehicle departure from them in real time, control over the distance between vehicles and a voice warning of the driver about the occurrence of unsafe situations on the road.
Automatically overwriting the old data Continuous video recording. If the memory card is full, the system automatically deletes the old data. As a result, the DVR records every second without any failures and does not miss a single moment. Normal recording Support for the Full HD 1080p 30fps / 60fps video and for the ultra-high resolution video 1296p UHD. Recording of every moment when the vehicle is moving at high speed. Recording in emergency cases In a collision or sudden braking of a vehicle, the DVR automatically starts recording the emergency to fix the real events, which will help in case of further litigation between participants of a road accident. Shock sensor Video recording in case of emergency, in a collision or sudden braking of the vehicle. The sensor also captures the force of impact (weak, medium, high). Recording function The Enable / Disable video recording function, protecting the personal data confidentiality. Beautiful and fashionable exterior design Using the qualitative PU varnish for coloring the body, pleasant tactile sensations on contact with the metal surfaces of the device. As a result of rigorous testing, we can note that the material of the YI CAR CAM DVR is durable and environmentally safe. Shock-absorption and fire-resistant material Using fire-resistant SABIC and PC / ABS materials, which are characterized by wear resistance, corrosion resistance, UV protection, high impact resistance, resistance to high / low temperatures. Therefore, as a result of long-term use, even when exposed to UV rays, you will not find yellowing or other signs of aging of the DVR. We did not use any screws for the outer casing of YI CAR CAM, while the presence of the anti-vibration lining ensures stable and reliable layout of a circuit board even during the movement of the vehicle.
|
